1990 Catalina 42

Basics:

• Hull ID # CTYTO189B090

• Year 1990

• Make Catalina

• Model 42, wing keel

• Class Sloop

• Fuel Type Diesel

• Hull Material Fiberglass

• Designer Frank Butler

Dimensions:

• LOA 41’ 10”

• LWL 36’

• Beam 13’ 10”

• Draft 4’ 10”

• Headroom        6’4’ – 6’8”

• Bridge Clearance  61’ (approx.)

• Ballast 8,300 lbs.

• Displacement 20,500 lbs.

• Theoretical hull speed     7.8 knots

Description

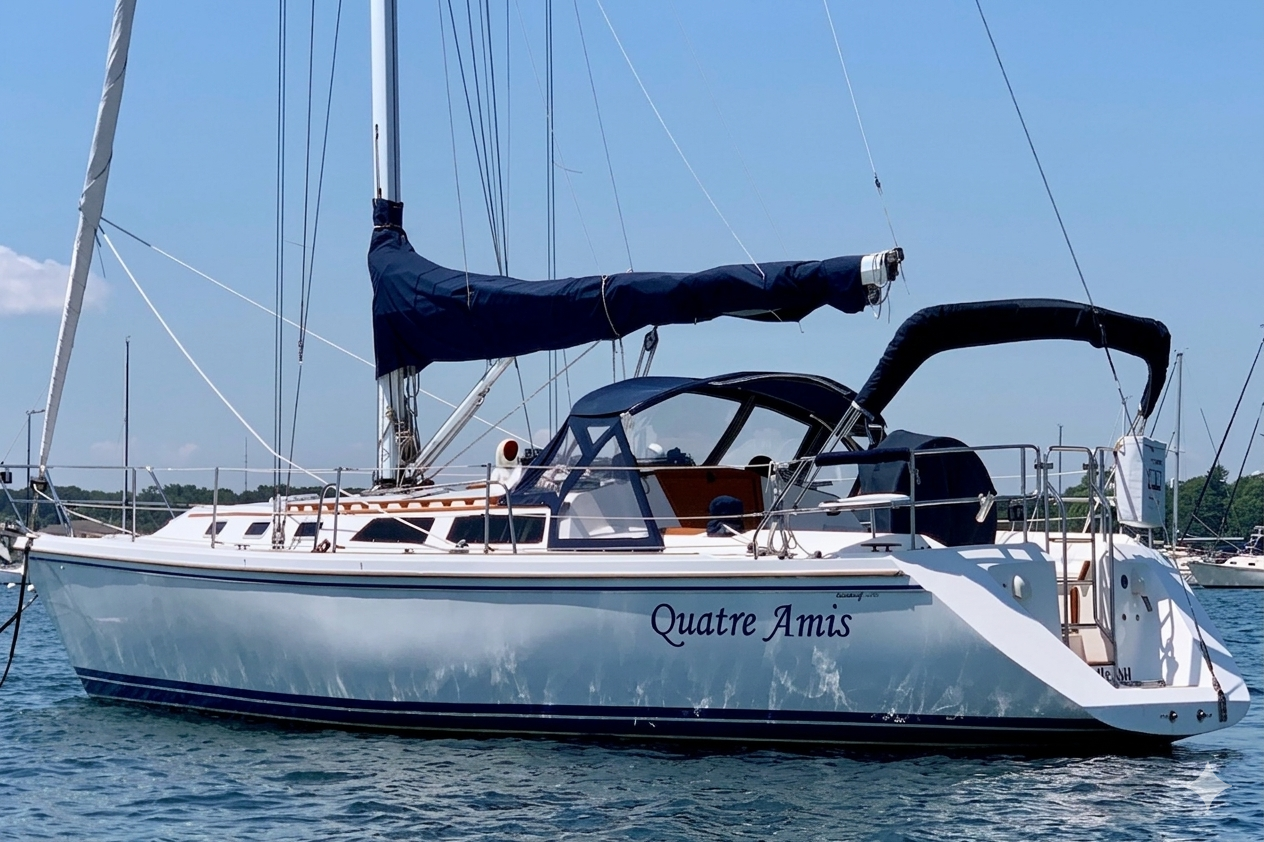

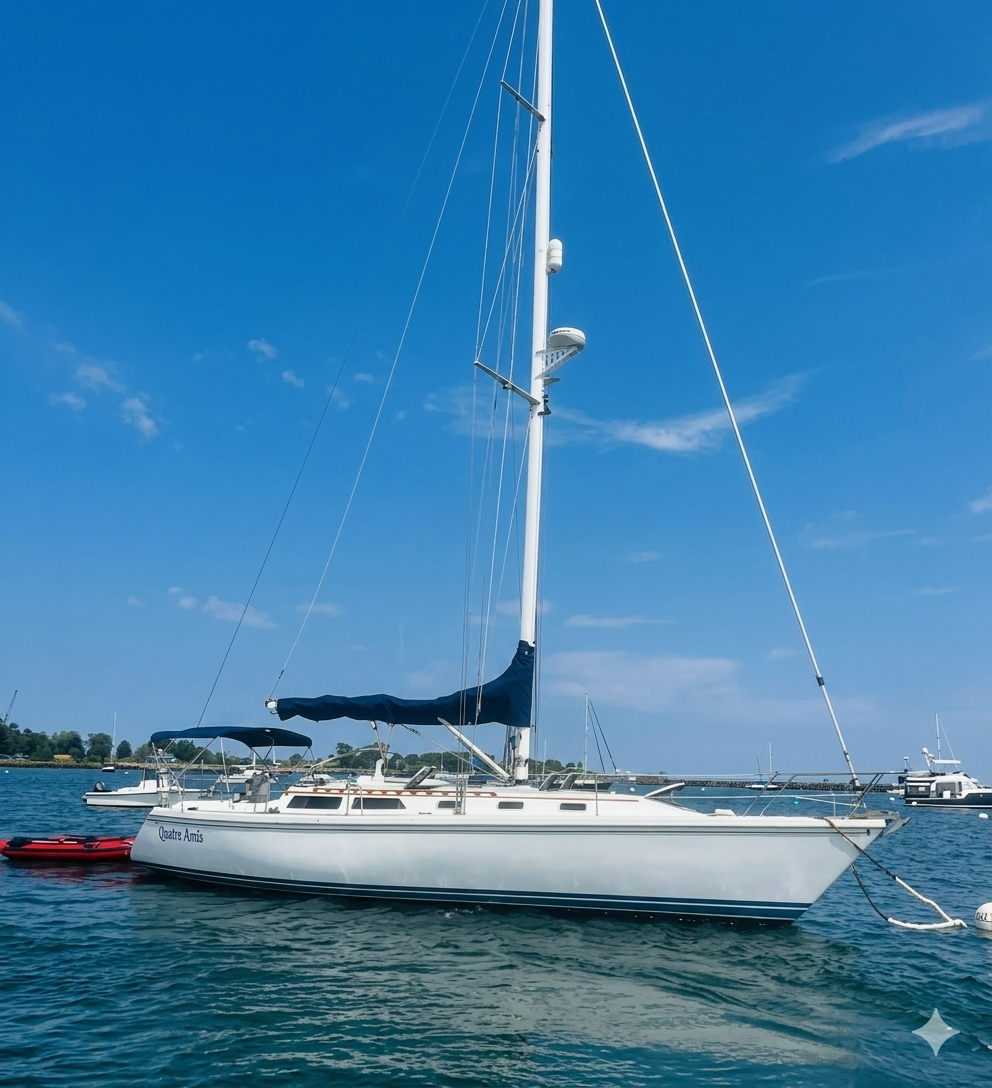

Quatre Amis is a well-equipped and well-maintained Catalina 42.  Her features include the sought after 3 stateroom configuration with 2 double berths aft, salon with adjoining galley, pullman master berth to port and private ensuite with stall shower forward.  The Catalina 42 is one of the most popular sailboats of its size and sought after for her sea-friendly hull, uncluttered deck, spacious cockpit, comfortable accommodations and efficient use of interior space.

Rigging and Sail Handling

• Standing rigging: Sloop rigged, double spreaders.

• Harken Lazy Jack #254 System

• Traveler:  Lewmar

• Boom Vang: Isovang

• Winches: (2) Lewmar #52 self-tailing, 2-speed sheet;  (2) Lewmar #40 self-tailing, 2-speed halyard

• Ground Tackle:

  • Primary:  CQR 35 with 3/8” galvanized chain plus 5/8” nylon line

  • Secondary:  Danforth anchor, 43 pound with chain/nylon line

• Windlass:

  • Maxwell Nilsson 12 volt DC, horizontal rope capstan/chain gypsy windlass,

  • Free-fall down and foot control up.

• Large anchor roller on foredeck

• Keel stepped mast is 53’ plus VHF antenna

• All sheets, halyards and furling lines lead aft to cockpit

• Spreader and foredeck lights attached to mast

Sails Inventory & Standing/Running Rigging:

• Mainsail Ulman, fully battened with 2 reef points (new 2005)

• Jib Ulman, 135% with UV shield

• Genoa Furler Hood Seafurl 3250

• Spars Isomat Aluminum, Double swept aft spreaders

• Lazy Jacks Harken #254

• Halyards Main & Jib (replaced 2016), spare main & jib, spinnaker

Electronics and Navigation:

• GPS Garmin GPSMap 740

• Radar Raymarine Pathfinder SL70; Blipper radar reflector

• Depth Autohelm

• Wind Speed Autohelm

• VHF Vigil RT 60 on Edson pedestal; Vigil C100 at navigation station

• Compass Richie Powerdamp 6” (Binnacle mounted)

• Wind indicator Windtrak at mast-head

Mechanical and Electrical:

• DC Voltage System 12 volts

• Inverter Xantrex XM 1800

• Electrical Outlets 110 volt outlets located throughout boat

• Shore Power (2) power locations, one forward and one aft

• (2) 30 amp 110 volt cords, 50’

• (2) 15/30 amp pigtail adaptor cable

• Batteries (2) 12 volt.     (replaced September 2021)

• Alternator Hitachi 80 Amp, 12 V.

• Battery Selector   3-way rotary switch

• Battery Monitor, dual at Nav Station

• Water pump FloJet 4400 series Quad diaphragm

• Macerator Pumps 2 Jabsco Model 18590-series (replaced 2006 & 2022)

• Bilge pump Rule Xylem with automatic float switch (replaced 2018)

Propulsion System:

• Engine Inboard, 4-cylinder Yanmar Model #4JH2E, 54 hp – upgrade from std. 44 hp

• Serial Number #11143

• Engine Hours 1,366 hours (March 2023)

• Exhaust Naqualift Exhaust Silencer

• Propeller 3-Blade Feathering 18” MaxiProp

• Stuffing Box (replaced 2018)

• Cutlass Bearing (replaced 2018)

• Rudder rudder bearing (replaced 2018)

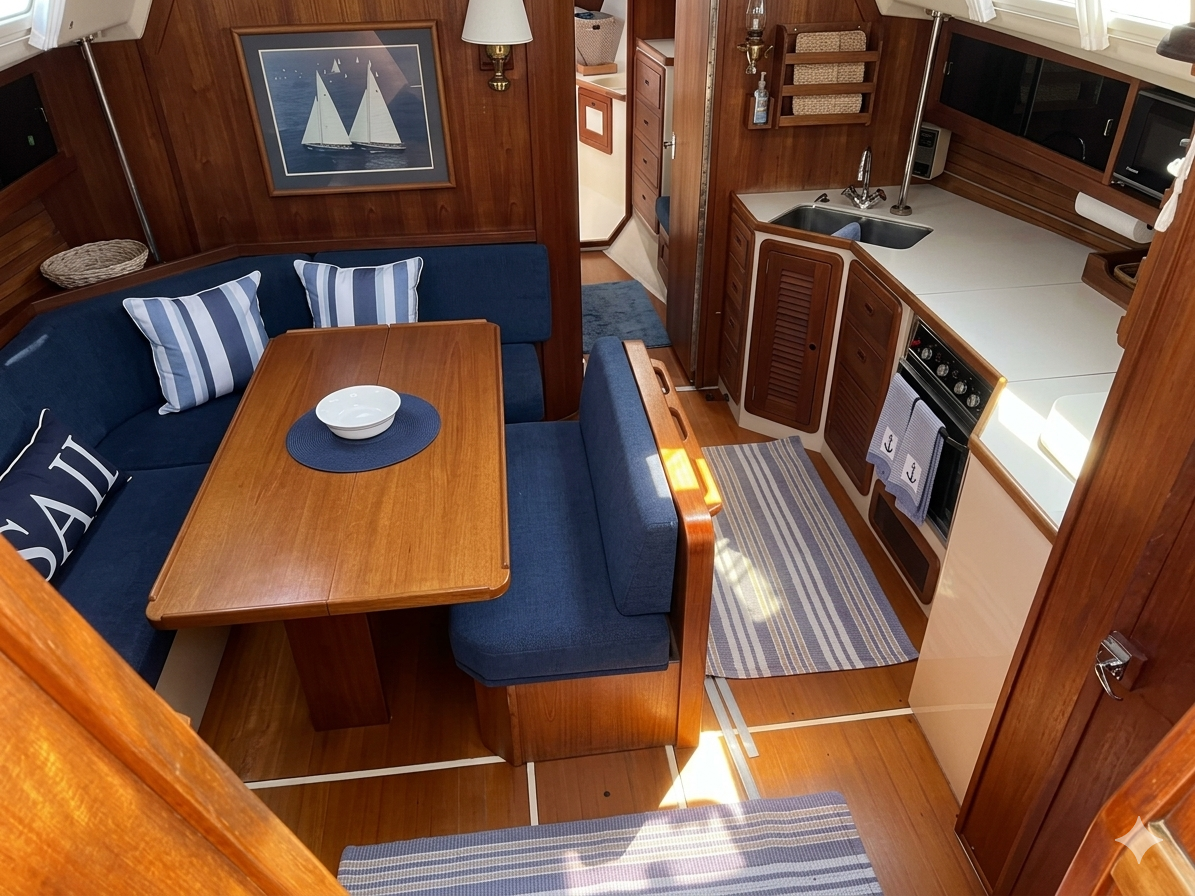

Cabin Interior:

• Stove with Oven Seward Princess 3 burner, gimballed

• Propane Monitor Xintex S-2 Propane/NG monitor and control

• Microwave Princess by Seaward

• Ice Box refrigeration, 6.6 cu.ft.

• Water System Pressurized hot and cold water, double stainless steel galley sinks

• Stereo Jensen MCD 5110 with interior and exterior speakers

• Galley Table Drop-Leaf

• Cabins 3 staterooms with double berths, hanging lockers, and settees

• Heads 2 Jabsco marine heads with 2 holding tanks and 2 macerator pumps

• each head has shower, sink, vanity, and medicine cabinet

• Cabin Fans 5

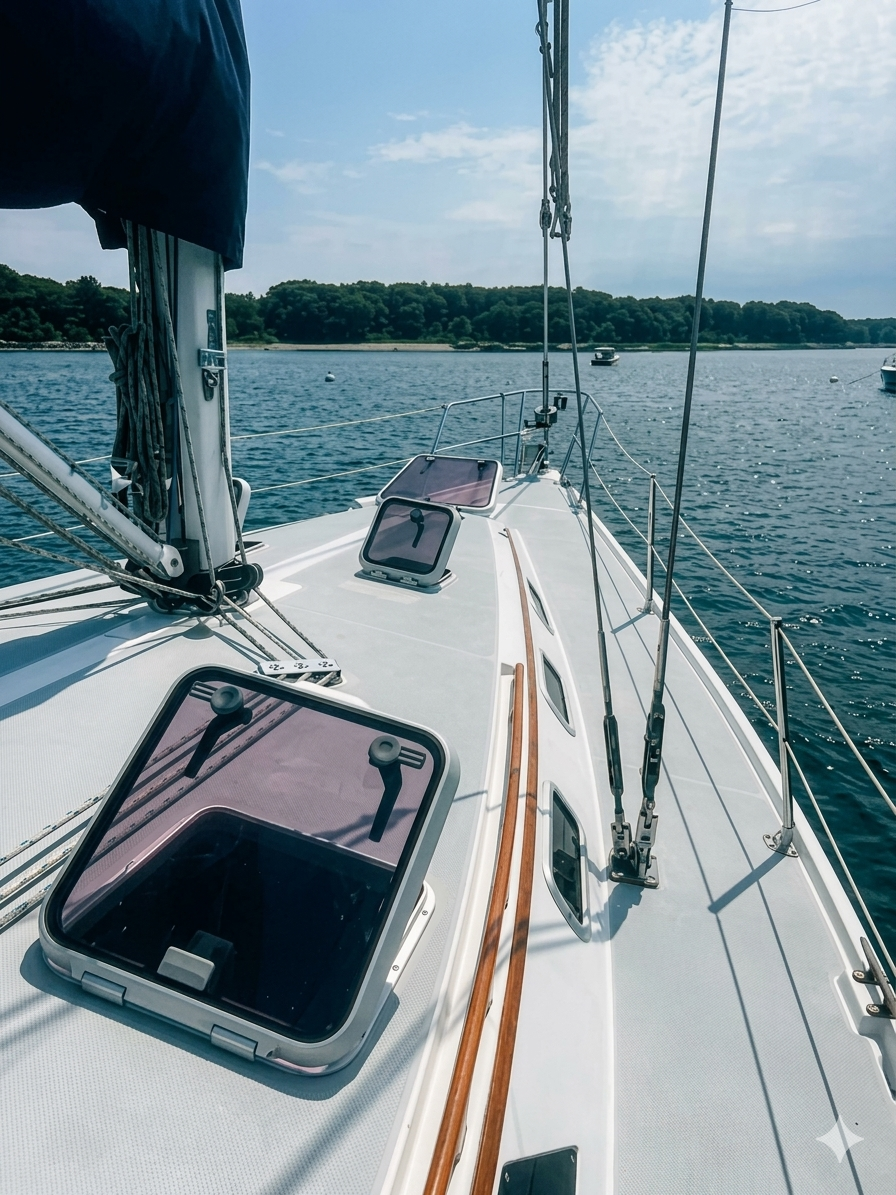

• Opening Hatches 7

• Opening Portholes 10

• Flooring Teak and Holly

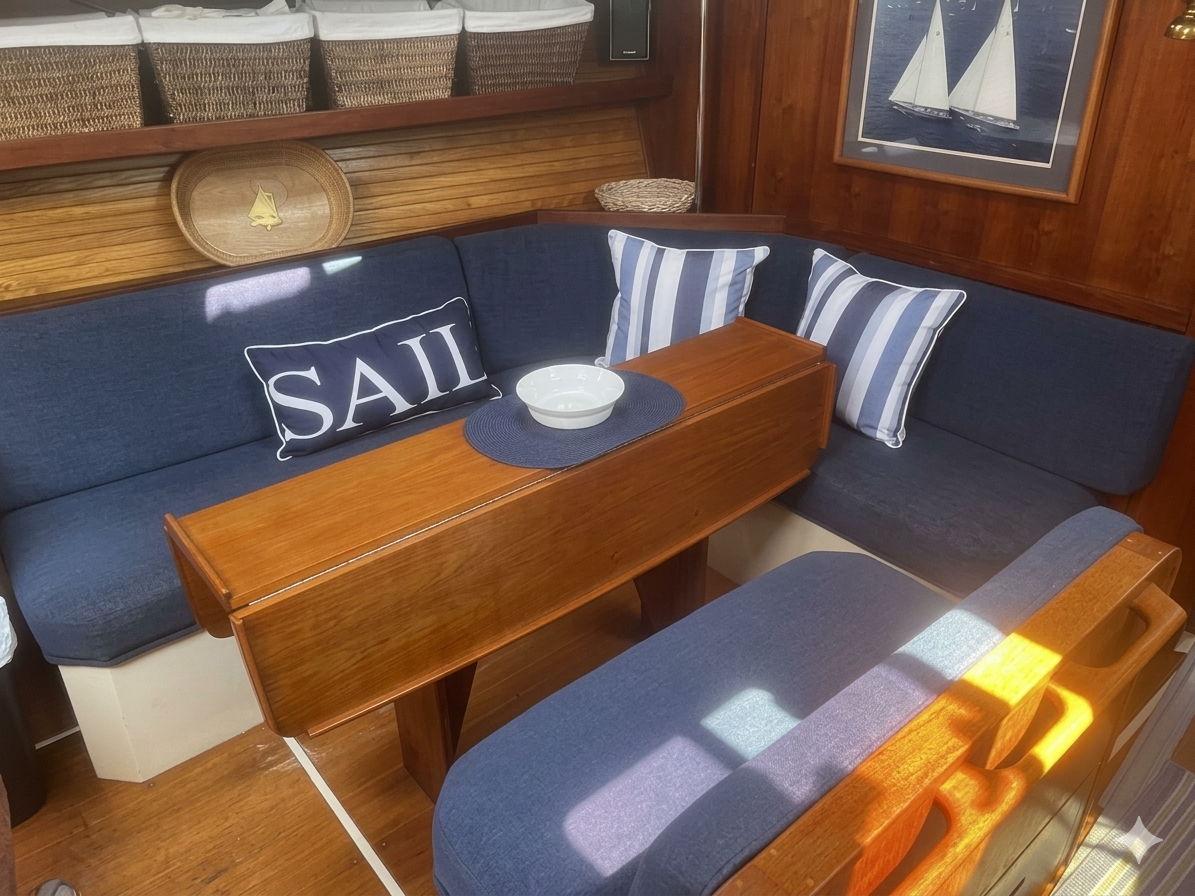

• Salon Fabric Upholstered  (new 2010)

• Interior Lighting LED

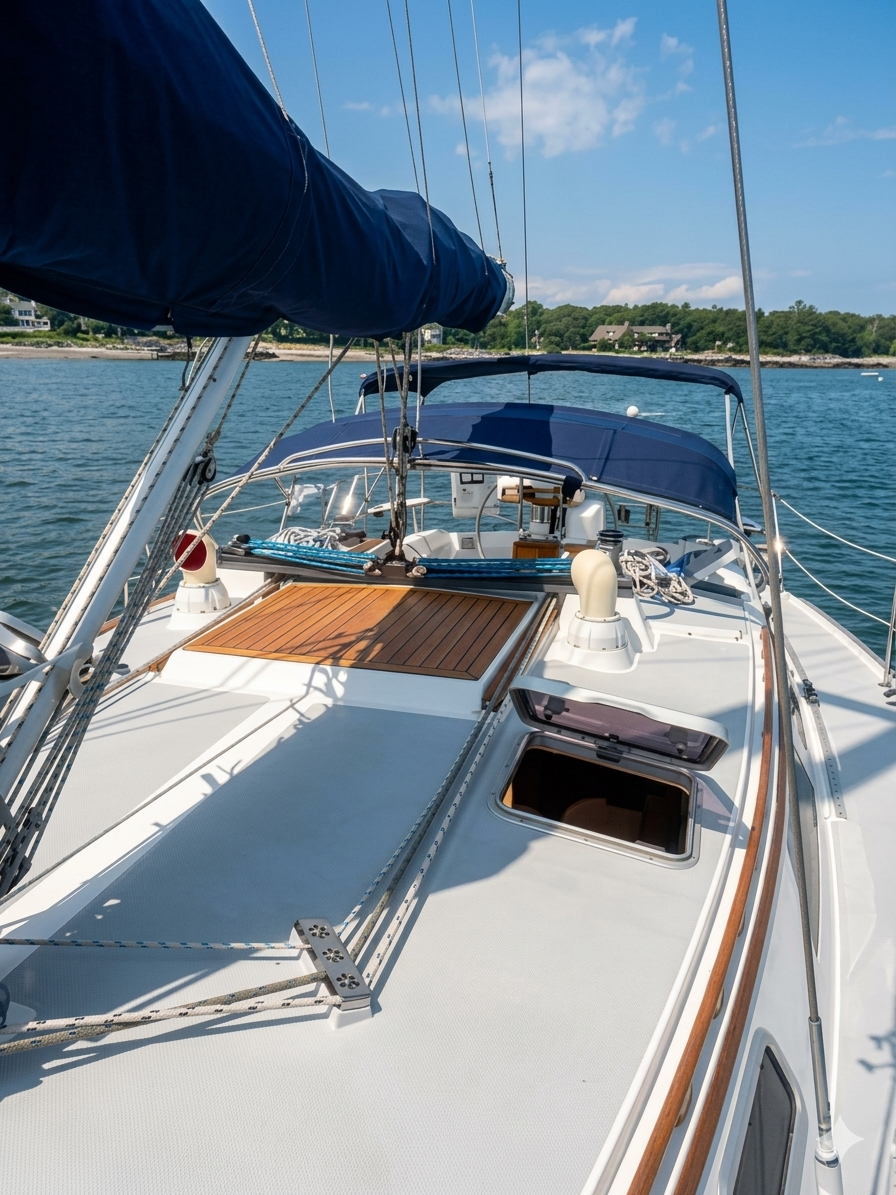

On Deck:

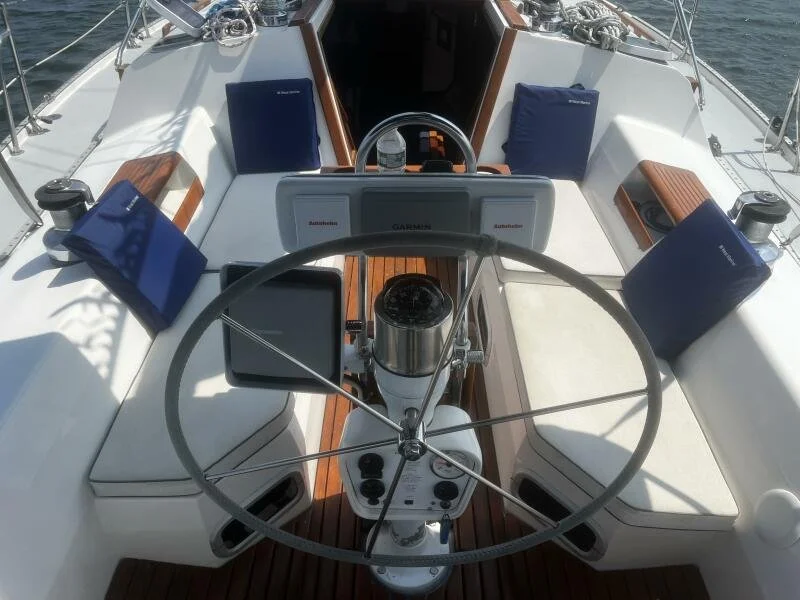

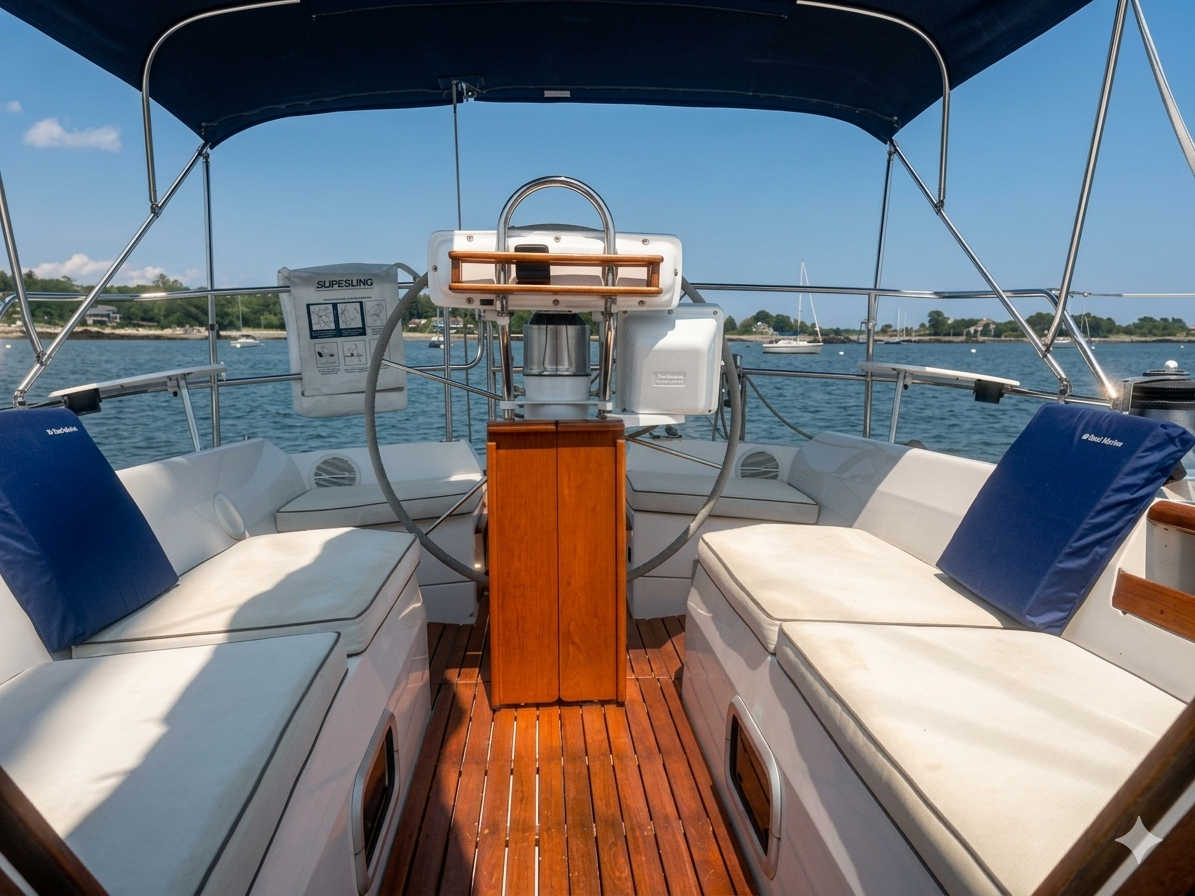

• Electronics pod on Edson pedestal steering system

• Raymarine AutoHelm rudder drive unit (needs new ST7000 or equivalent control head)

• Teak folding cockpit table

• Teak, 4-drink holder

• Swim platform aft with swim ladder

• Deck shower on aft swim platform with hot and cold water

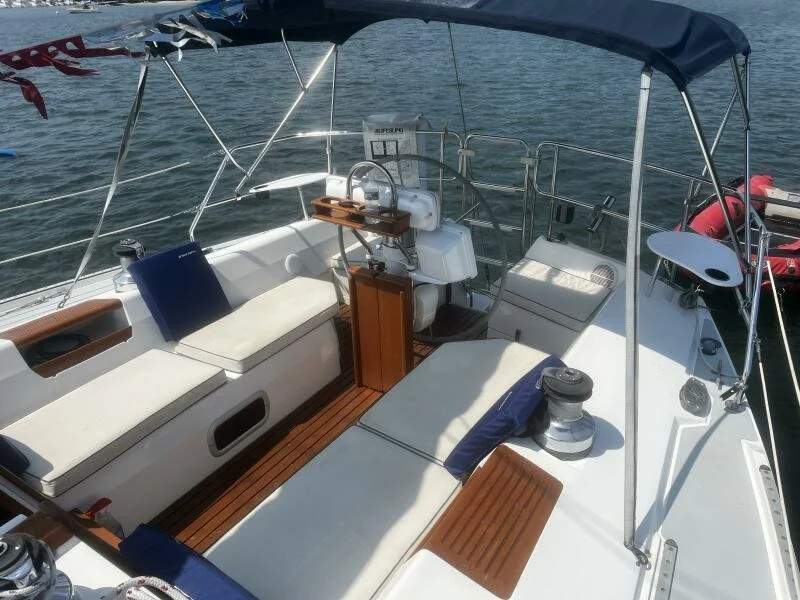

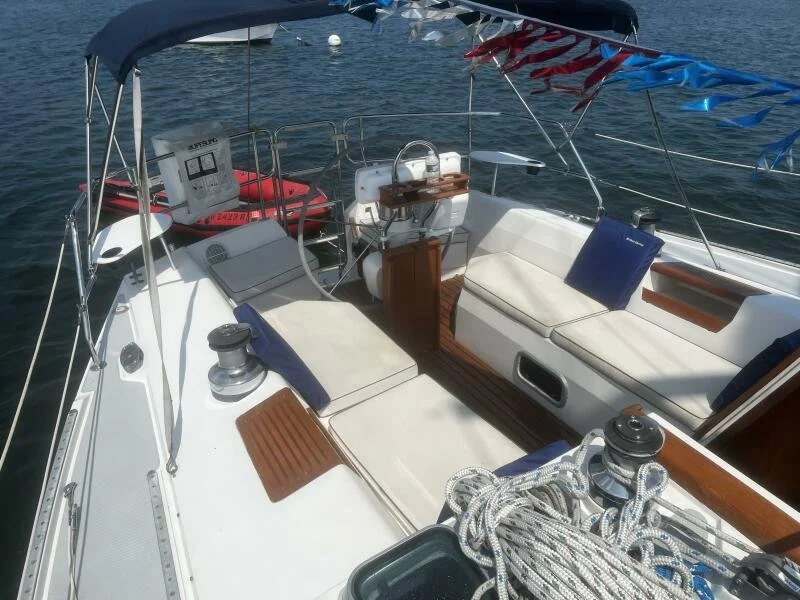

• Dodger and Bimini UV protected canvas on steel-support frame covers cockpit

• Dodger-to-bimini connector

• Helm Cover UV protected canvas custom cover

• Winch Covers (4) UV protected canvas custom covers

• Cockpit Cushions Custom bench and helm cushions;  (4) 16” Flotation Cushions

• Barbeque Magma stainless barbeque grill

• Dual stereo speakers

• Outboard engine lift crane

Tankage:

• Fuel 39 Gallons

• Fresh Water 4 tank, total 120 Gallons

• Blackwater 2 tanks; charcoal vent added to aft tank

• Hot Water 11 Gallons

• Propane 10 Gallons

Safety Equipment:

• LifeSling2 Overboard Rescue System

• Emergency Tiller

• Propane Storage Lockers (2)

• Sea Anchor

• Smoke/CO Detectors (3) Home Hero

• Xintex S-2 Propane monitor/detector & control

• Various Personal Flotation Devices

• Fire Extinguishers

• Whale manual bilge pump

• Rule 3700 GPH automatic pump with float switch

Galley Equipment:

• Dishes & silverware

• Pots & pans

• Glasses

• Coffee pots

• Coffee cups

• Utensils

• Cutting boards


Miscellaneous:

• Cockpit floorboards

• Sheets(fitted) & pillow cases

• Blankets comforters

• Marine tool kits

• Various spare parts & filters

• Windchute
